Imer Mortarman 750 MBP (Mini Batch Plant)

Product image 1
1 / 3

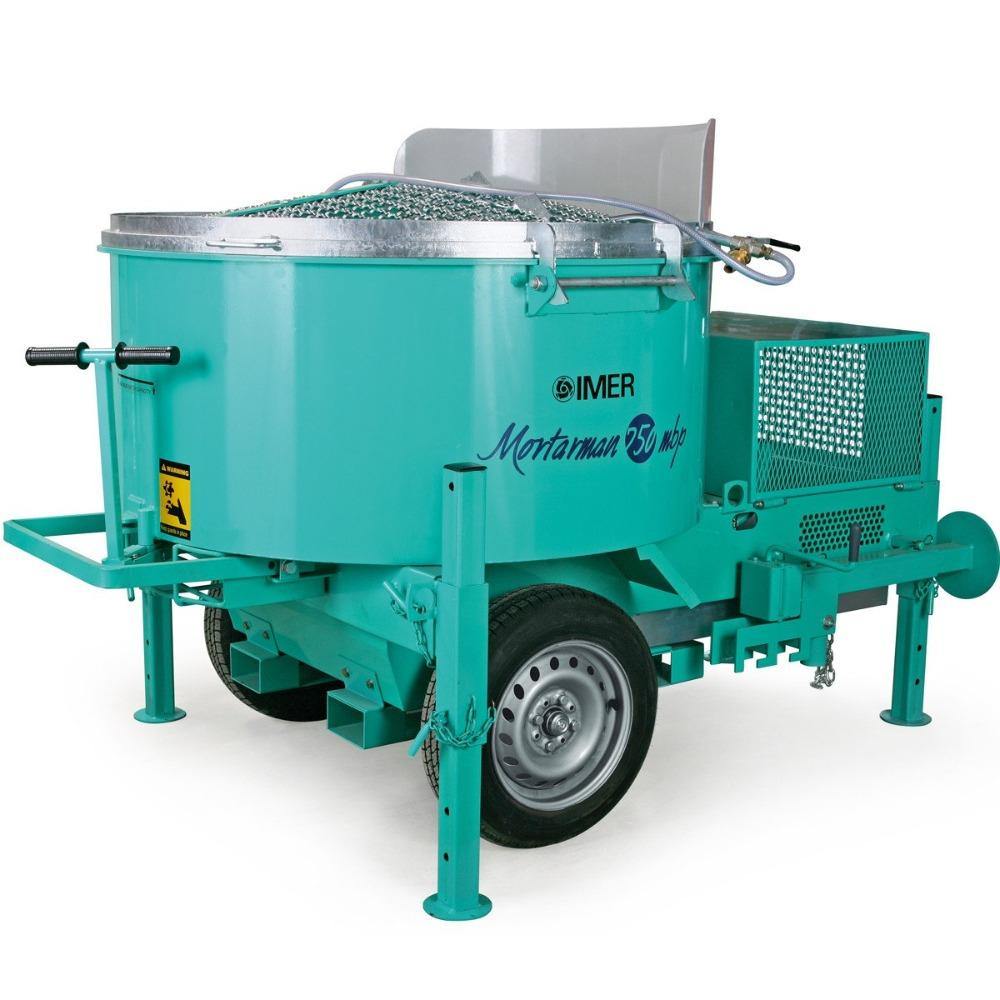

Imer Mortarman 750 MBP (Mini Batch Plant)

Revolutionize Your Precast Production with Mortarman 750 Mixer

Elevate your precast production with the Mortarman 750 Mortar Mixer – a robust, versatile mixer that doubles as a mini batch plant, ideal for a wide range of materials.

Features

    • High Capacity Mixing: Mixes 1600 lbs of mortar, dry pack, stucco, or sand & cement.
    • Concrete Compatible: Capable of mixing concrete with a max aggregate size of 3/8".
    • Powerful Motor Options: Available in 5 hp 220V single phase or 7.5 hp 3 phase 220V.

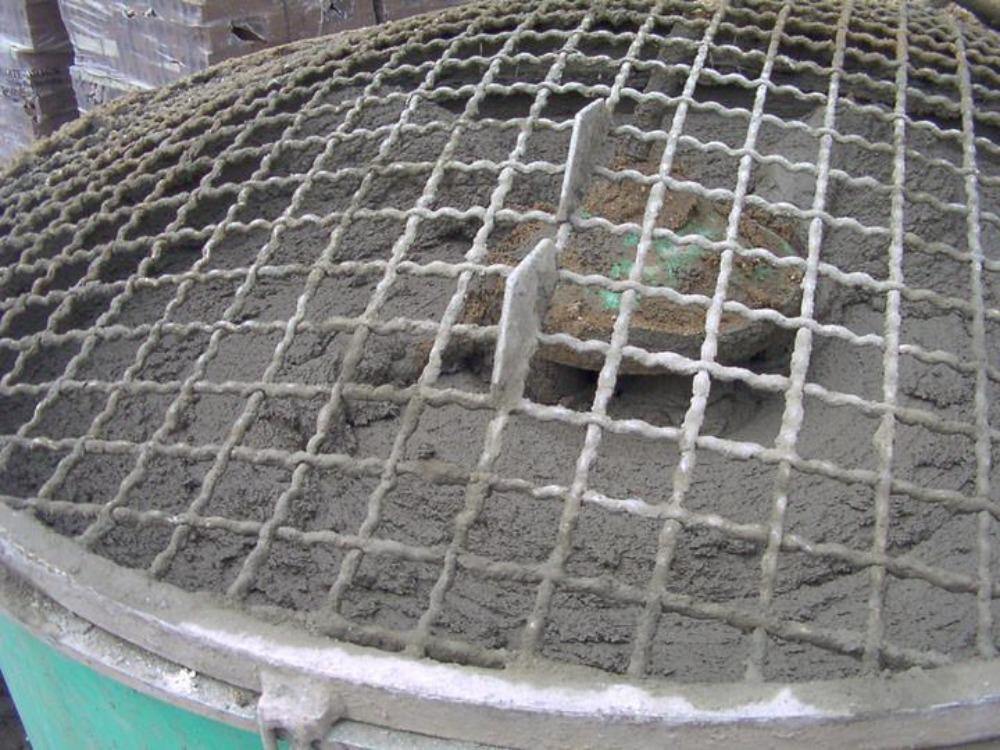

    • Safety-Enhanced Design: Features a one-piece hinged grate with auto shutoff.
    • Towing Safety and Efficiency: Low and wide design for safe and speedy transportation.
    • Versatile Material Compatibility: Can mix materials ranging from dry to wet.
    • Optimal Discharge Height: Discharge outlet height is 30 inches.
    • Substantial Drum Size: Drum diameter measures 52 inches.
    • Maintenance-Free Bearings: Sealed shaft bearings that never need maintenance.
    • Flexible Power Options: Gas motor 13 HP Honda with electric start, plus electric motor options.
    • Adjustable Support Legs: Four corner support legs for quick and easy setup.



 Imer Mix 750 Batch Plant Specifications
Drum capacity 27 cubic feet
Batch output 17 cubic feet  (est 1,700lbs )
Gas motor w/ centrifugal clutch 13 HP Honda w/ electric start
Electric motor  220 Volt 5 HP 1 phase / 7.5 HP 3 phase
Drum diameter 51"
Maximum aggregate size 3/8" minus
Discharge outlet height 30"
Pneumatic tires 22"
Weight  1,700lbs
Dimensions  L x H x W 90" x 62" x 63"
Shipping Pallet Dimensions L x H x W 86" x 64" x 64"

Revolutionize Your Precast Production with Mortarman 750 Mixer

Elevate your precast production with the Mortarman 750 Mortar Mixer – a robust, versatile mixer that doubles as a mini batch plant, ideal for a wide range of materials.

Features

    • High Capacity Mixing: Mixes 1600 lbs of mortar, dry pack, stucco, or sand & cement.
    • Concrete Compatible: Capable of mixing concrete with a max aggregate size of 3/8".
    • Powerful Motor Options: Available in 5 hp 220V single phase or 7.5 hp 3 phase 220V.
    • Safety-Enhanced Design: Features a one-piece hinged grate with auto shutoff.
    • Towing Safety and Efficiency: Low and wide design for safe and speedy transportation.
    • Versatile Material Compatibility: Can mix materials ranging from dry to wet.
    • Optimal Discharge Height: Discharge outlet height is 30 inches.
    • Substantial Drum Size: Drum diameter measures 52 inches.
    • Maintenance-Free Bearings: Sealed shaft bearings that never need maintenance.
    • Flexible Power Options: Gas motor 13 HP Honda with electric start, plus electric motor options.
    • Adjustable Support Legs: Four corner support legs for quick and easy setup.



 Imer Mix 750 Batch Plant Specifications
Drum capacity 27 cubic feet
Batch output 17 cubic feet  (est 1,700lbs )
Gas motor w/ centrifugal clutch 13 HP Honda w/ electric start
Electric motor  220 Volt 5 HP 1 phase / 7.5 HP 3 phase
Drum diameter 51"
Maximum aggregate size 3/8" minus
Discharge outlet height 30"
Pneumatic tires 22"
Weight  1,700lbs
Dimensions  L x H x W 90" x 62" x 63"
Shipping Pallet Dimensions L x H x W 86" x 64" x 64"

Select Choose a motor version
From $4,724.65

Original: $13,499.00

-65%
Imer Mortarman 750 MBP (Mini Batch Plant)

$13,499.00

$4,724.65
